Housings, chassis and enclosures for electronics
Describe the product and the parts that go inside. We send back the 3D model, drawings and a parts list, checked against the rules of the process that will make it.
New request
Housing for a 4-inch thermal label printer: roll up to 127 mm on a 1 in core, top cover on a rear hinge opening about 100° with a side release button, sprung print head, platen roller and motor, 120 x 80 mm main board with USB-C and Ethernet. Max 200 x 240 x 180 mm. 20 printed, then 3,000 a year moulded.
Sent
Understanding the request

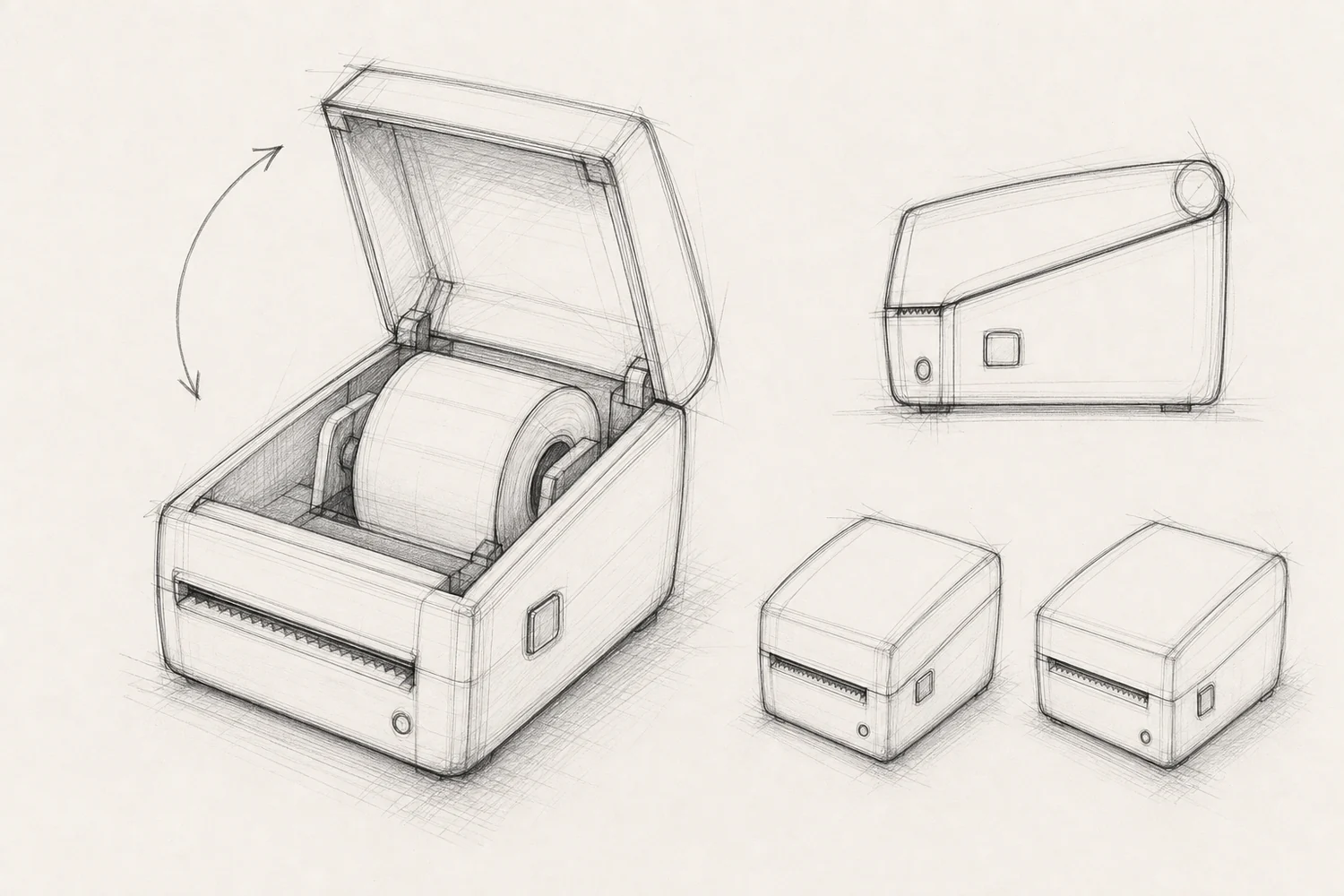

Concept image for your approval
Approved
Standards, parts and process
Standards and rules
Parts
Process
20 printed prototypes, then about 3,000 a year injection-moulded

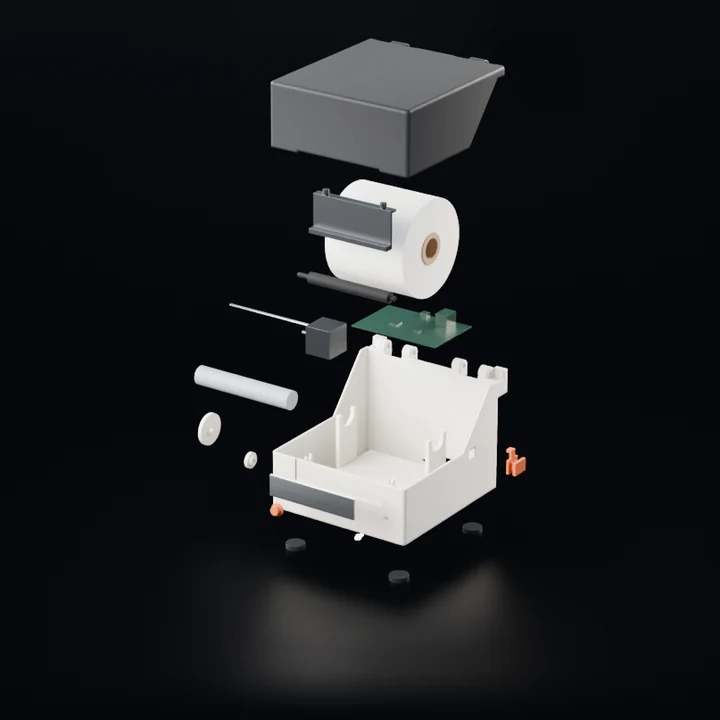

3D model

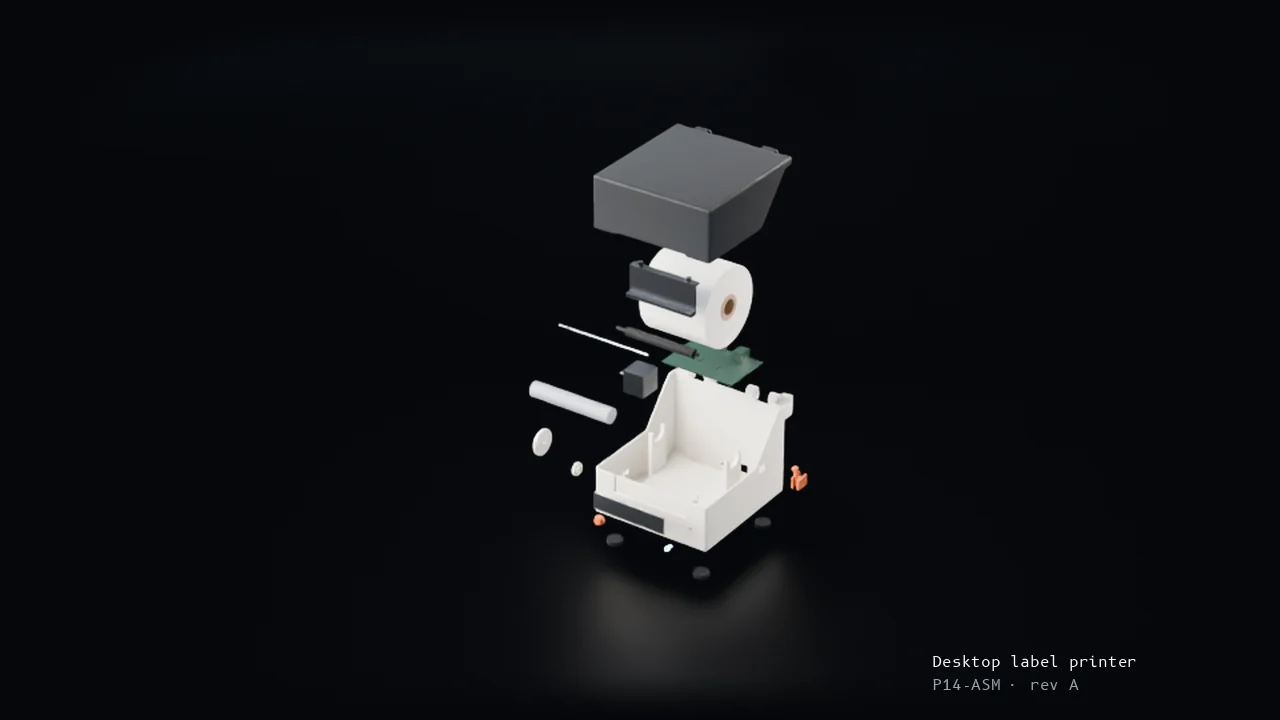

P14-ASM

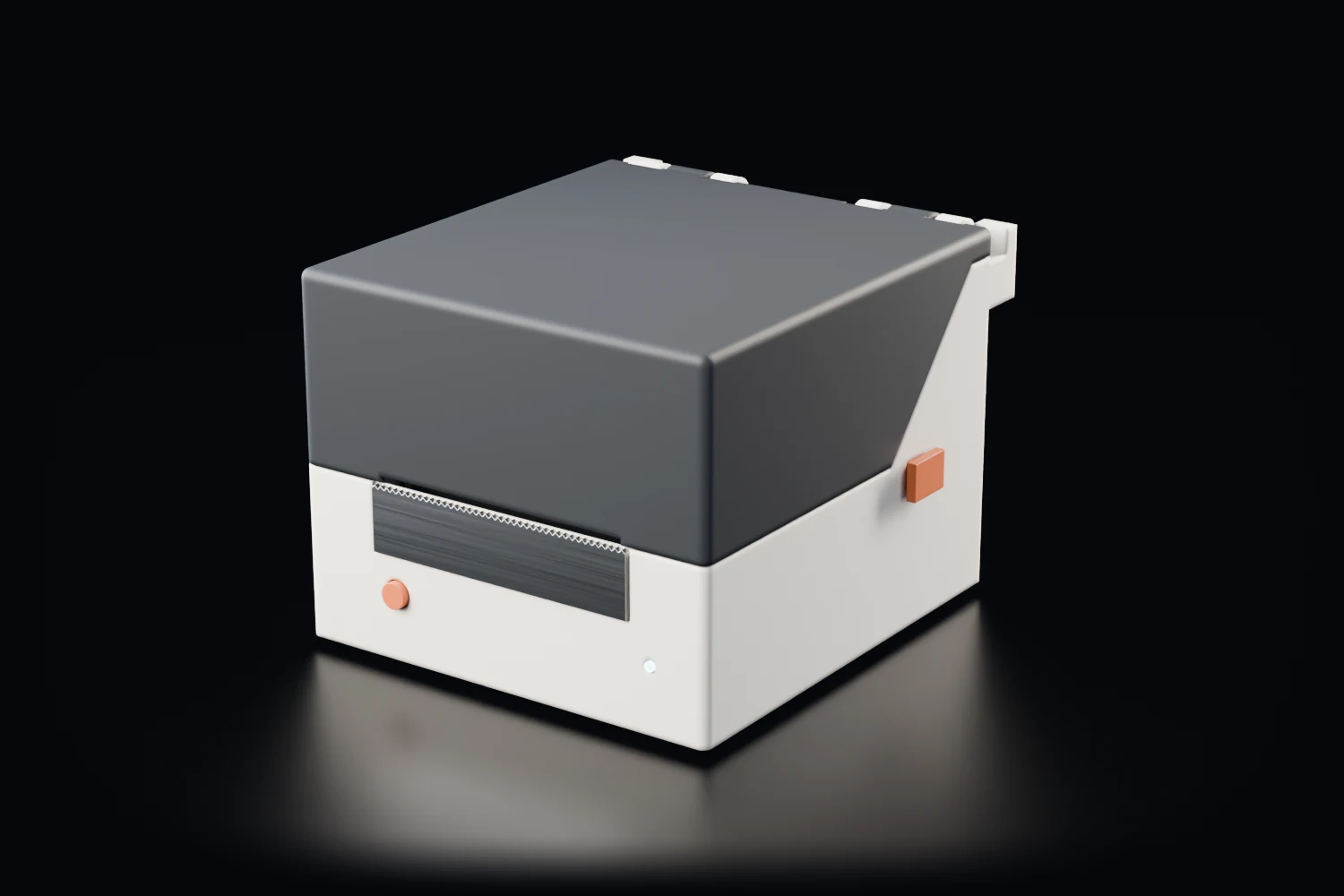

Render, drawings and assembly guide
Also for

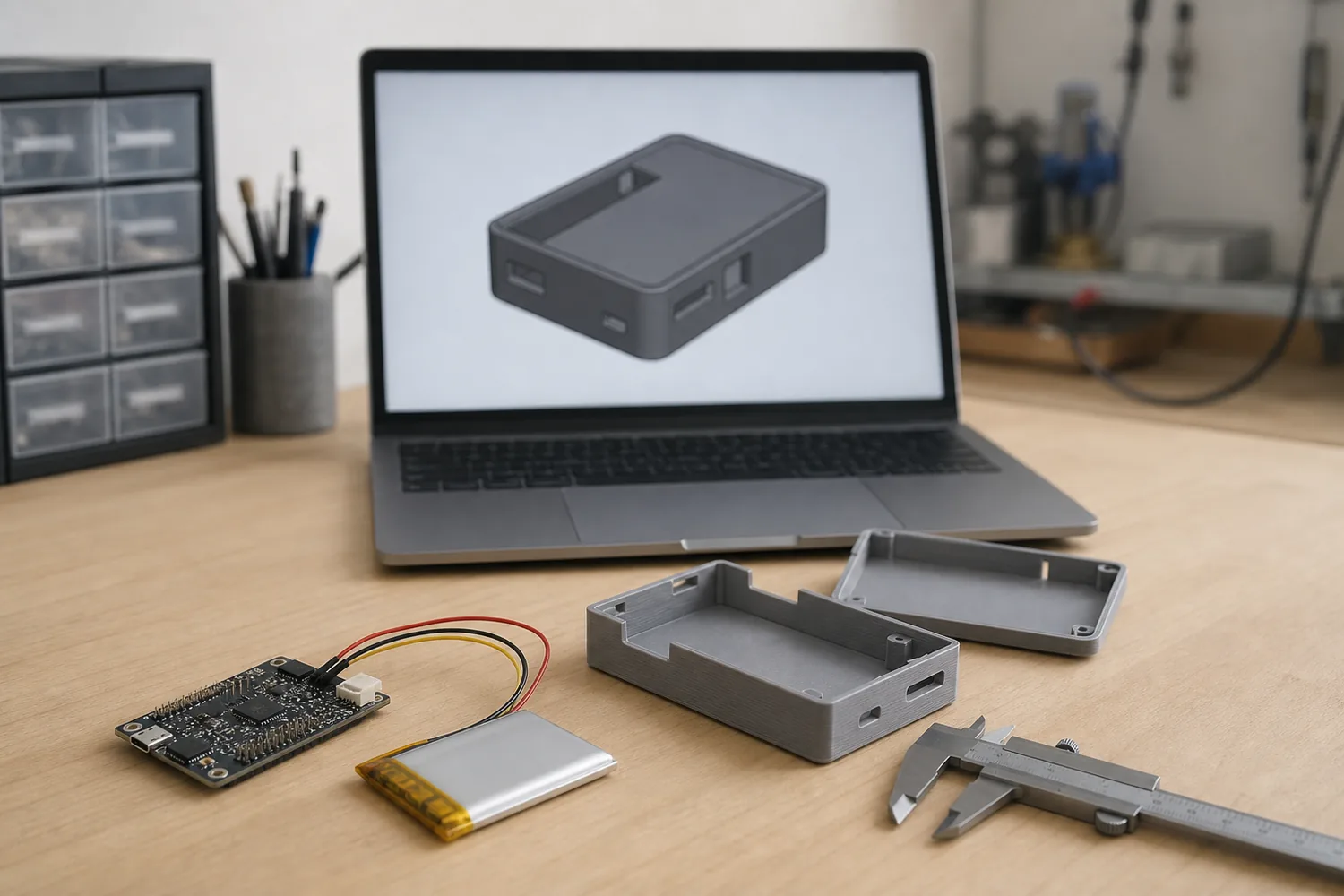

From dev-kit prototype to manufacturing drawings.
See the page for hardware startups →

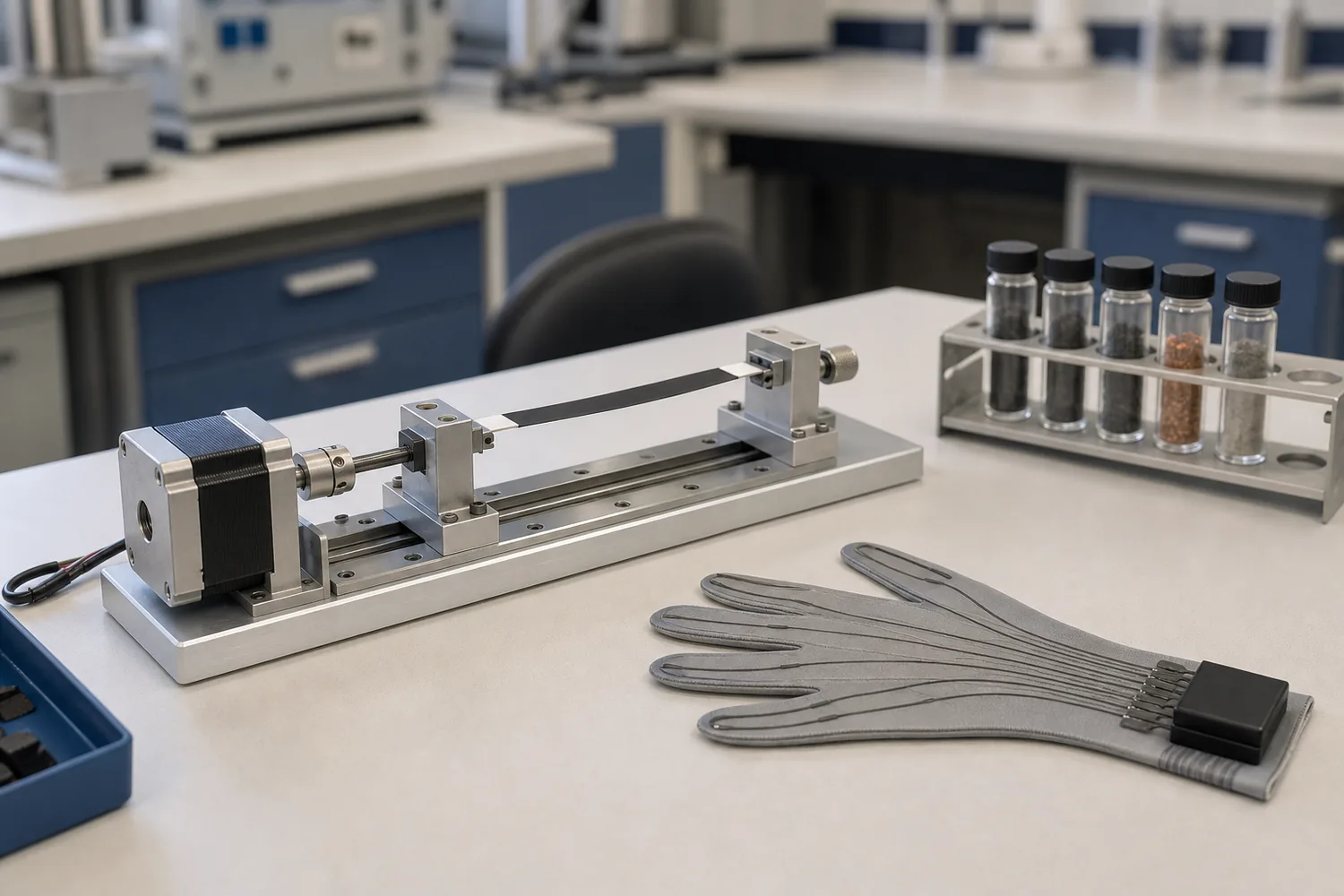

Application demos and experiment setups for your lab.
See the page for research labs →
Keep the concept and the client. Send us the drawing hours.
See the page for design and engineering firms →FilesSTEP · IGES · DXF · PDF · XLSX
DrawingsANSI or ISO
ProcessesInjection moulding · Sheet metal · Extrusion · CNC machining · 3D printing
Brief us the way you would brief an engineer. We send back files your team and your suppliers already open.
A product description in plain words: what it does and where it is used
The boards and parts that go inside, with links to their datasheets
Sketches, photos or old drawings, if you have them
Your STEP files, when you want an existing design checked or changed
We design, check and document
3D parts and assembly
Part drawings with standard notation
Flat patterns for sheet metal
Assembly drawing with balloons and a parts list
Parts list with a quote range
Rule report, reviewed by an engineer
Box and lid with bosses, snaps, vents and gaskets, for moulding or printing.
Sheet metal with bends, reliefs, PEM nuts and flat patterns; machined frames and plates.
Extruded aluminium shells and frames, with their end caps.
Mains-powered products get mains and low-voltage zones, cord entry and earthing, designed toward UL, CE or KC.
Anamor · Anamor Inc. · 8 The Green, Ste R, Dover, DE 19901, USA
A description in plain words: what the product does and where it is used. Add the parts that go inside, with links, and any sketches, photos or drawings you have.
Yes. We run the fit, clearance, access and process rules on your STEP files and send the report with a list of fixes. No redesign unless you ask for one.
Yes. We model from a 2D drawing, turn a scan or STL into editable CAD, or rebuild an old part. It passes when it matches the source within the stated tolerance.
STEP and IGES, which open in SolidWorks, Creo, NX, Inventor and Fusion; drawings as PDF and DXF. US projects get ANSI sheets with inches alongside millimetres; others get ISO sheets.
Injection moulding, 3D printing, CNC machining, sheet metal and extrusion. Each part is checked against the rules of the process that will make it.
Every project is quoted after we read the request. The questions and the quote are free.
An engineer reviews every package before it reaches you. A change to what you approved is confirmed by a person.
To check fit with your real boards and parts before tooling. For sheet-metal and extruded designs it is a printed stand-in of the same shape.
Not yet. Join the waitlist for early access; until then we run it for you.
We reply with what we understood, the questions that change the design, and a quote.
